Planes Between
Path: Insert | Advanced Replication Tools | Planes Between

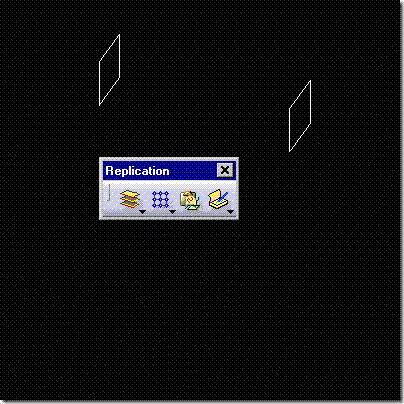

Located in a fly-out on the Replication toolbar.
Use this to ...
- Create multiple planes evenly spaced between two existing planes. These planes are parametrically linked to the distance between the two defining planes.
Prerequisites
- You should be in the Generative Shape Design workbench.
Process: Creating Multiple Planes

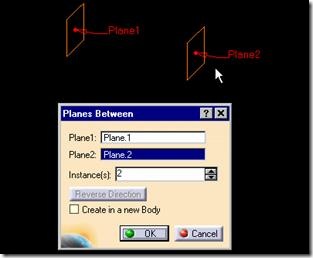

1. Select Insert | Advanced Replication Tools | Planes Between. The Planes Between dialog displays.
2. In the Graphics window, pick the first plane.
3. In the Graphics window, pick the second plane.

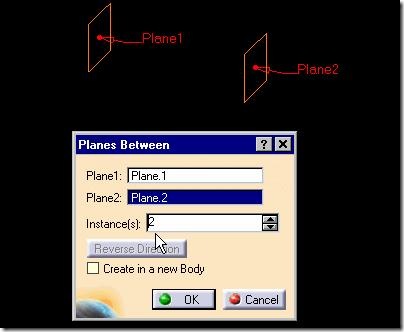

4. In the Instance(s) text box, enter the number of planes.

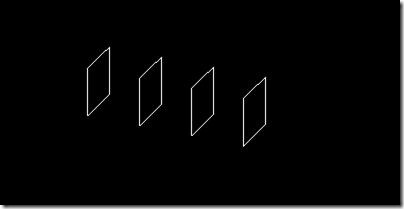

5. Click OK to create the multiple planes.
Options
Create in a New Body
Creates the multiple planes in a new open body.
