Adding or Removing Points on Existing Splines

Adding or Removing Points on Existing Splines

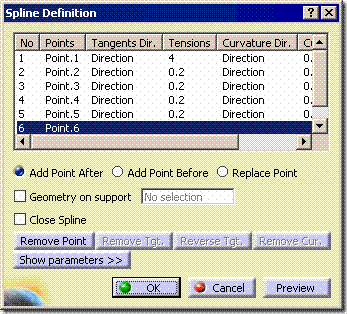

1. In the Graphics window, double-click the spline. The Spline Definition dialog displays.

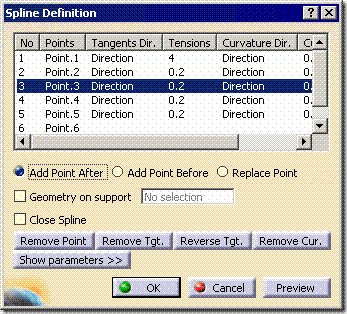

2. In the Points list of the spline definition area, select the point for modification.

3. Activate the required point option, Add point After, Add Point Before or Replace Point.

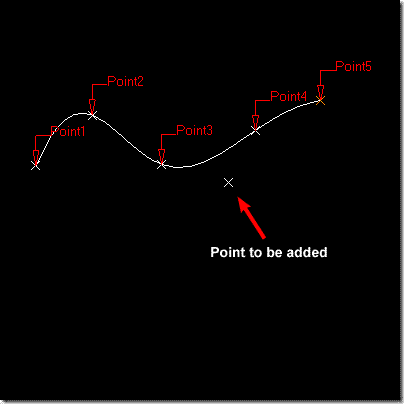

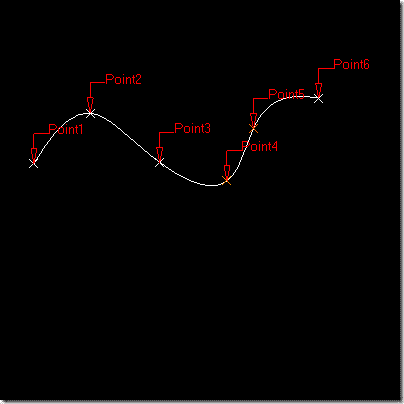

4. In the Graphics window, pick the new point. Depending on the activated option, CATIA adds the point before or after the existing point or replaces the existing point with the new point.

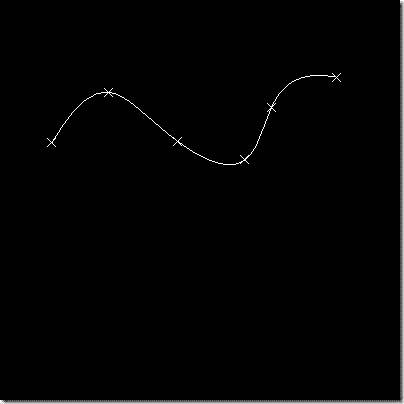

5. Click OK to create the new spline.
